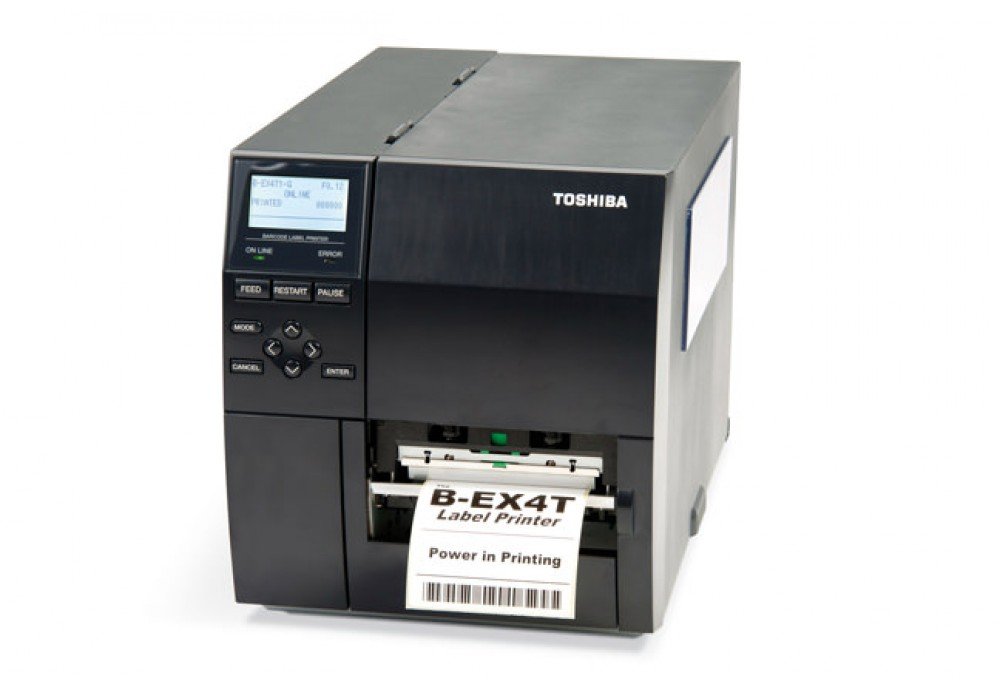

Máy in Toshiba B-EX4T1-300 dpi

Printing Technology: Thermal transfer, Direct thermal

Thermal Print Head Type: Near Edge

Interface: Ethernet 10/100 BaseT, USB 2.0

Memory: 16 MB (Flash ROM), 32 MB (SD-RAM)

Alignment Base: Central

Media loading: Side opening

Sensor: Reflective, Transmissive

User Interface: LCD screen (Graphic 128 x 64 dots), Status indicator

Operator keys: Feed, Restart, Pause, Menu navigation

Dimensions (W x D x H): 278 x 460 x 310 mm

Weight: 17 kg

Duty Cycle**: 30,000 labels / day

Print width: 4.09 inches (104 mm)

Print Speed: Up to 14 ips (355.6 mm/sec)

Resolution: 203 dpi, 305 dpi

Fonts: Bitmap, Outline, Writable characters, Optional True Type

Print length: Max. 1,498 mm

Barcodes: EAN8, EAN13, JAN8, JAN13, UPC-A, UPC-E, NW-7, CODE 39, CODE 93, ITF, MSI, CODE128, EAN128, Industrial 2 of 5, Customer Barcode, POSTNET, RM4SCC, KIX CODE, GS1 DataBar

2D Codes: Data Matrix, PDF417, QR Code, Maxi Code, Micro PDF417, CP Code

Media width: 27 - 120 mm

Media thickness: 0.13 - 0.263 mm

Max outer roller diameter: 200 mm

Core diameter: 76.2 mm

Media type: Vellum paper and labels, Matt coated paper, Glossy coated paper, Synthetic film, PET film, Polyimide

Max ribbon roll diameter: 90 mm

Standard ribbon length: 600 m

Ribbon width: 41 - 112 mm

Ribbon Core Width : Flush Cut to Ribbon Width

Print Functions: Ribbon Saving*, Z Mode ready

Programming language: TPCL, BCI

Issue mode: Batch, Auto cut*, Peel-off*

System Features: RFID Ready, Double Engine Ribbon Tension Control, Snap-in Print Head, RFID SPRiNT, Energy Star compliant, SNMP tool for network management, BarTender UltraLite, Cover damper GUIDE to the no. of 4'' high labels a day a printer may produce. This is not a guarantee nor a limitation of performance

Accessories

• B-EX700-RFID-H1-QM-R - UHF RFID Module (13.56 MHz)
• B-EX904-DP-QM-R - Cover Damper
• B-EX700-RS-QM-R - Serial Interface for B-EX & BX400 series
• B-EX700-RFID-U4-EU-R - UHF RFID Module (869.85 MHz)
• B-EX904-R-QM-R - Ribbon Save Module
• B-EX904-PK-QM-R - Narrow Width Platen Kit
• B-EX700-IO-QM-R - Expansion I/O Board
• B-EX204-R-QM-R - Rotary Cutter
• B-EX700-WLAN-QM-R - Wireless LAN Interface
• B-EX204-QM-R - Disc Cutter
• B-EX700-RTC-QM-R - Real Time Clock
• B-EX700-CEN-QM-R - Centronics Parallel Interface
• B-EX904-H-QM-R - Peel-Off Module
